SMT Nozzles for Placement Machine in SMT Industry

The Current Landscape:

SMT pick and place machine nozzles come in various types, each designed for specific component handling needs. These nozzles play a pivotal role in the placement of components onto circuit boards, ensuring precise alignment and efficient production. Among the most common types are:

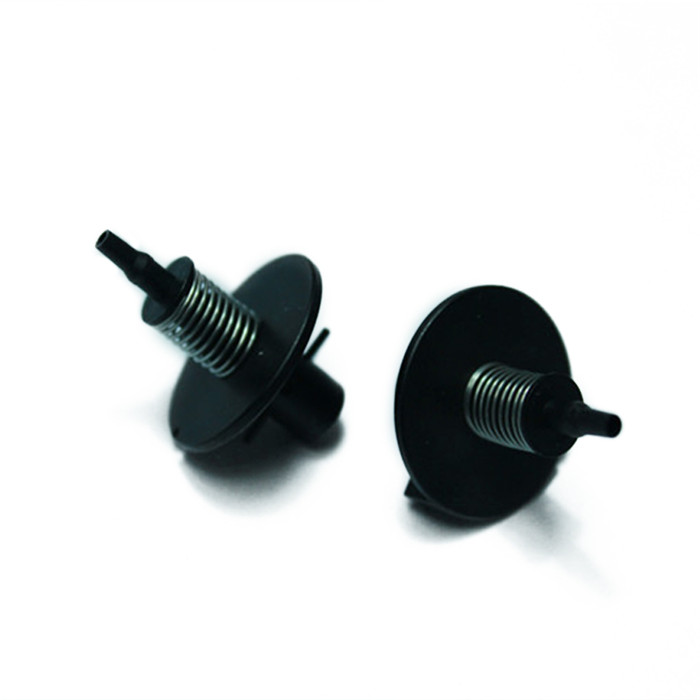

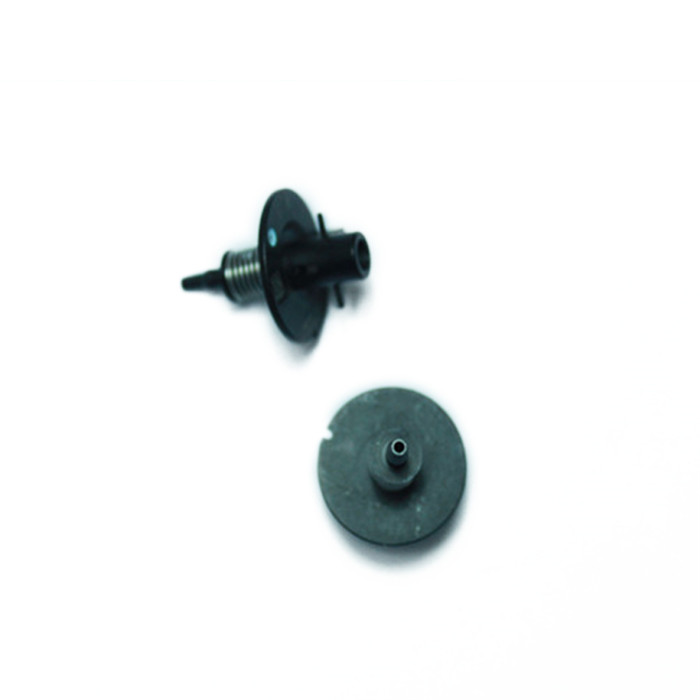

1. Vacuum Nozzles:

Vacuum nozzles utilize suction to components securely during the pick and place process. They are commonly used for handling lightweight components, such as resistors, capacitors, and discrete semiconductors.

Vacuum nozzles offer reliable component pickup and placement, ensuring consistent alignment and minimizing the risk of misplacement or damage.

2. Gripper Nozzles:

Gripper nozzles employ mechanical grippers to grasp and components during the pick and place operation. They are often used for larger or irregularly shaped components that may not be suitable for vacuum pickup.

Gripper nozzles provide robust component handling capabilities, allowing for secure placement of a wide range of component types and sizes.

3. Paste Dispensing Nozzles:

Paste dispensing nozzles are particular nozzles used for applying solder paste or adhesive onto circuit boards. They feature precise dispensing mechanisms that ensure accurate application of paste or adhesive onto designated areas.

Paste dispensing nozzles play a critical role in the soldering process, facilitating the attachment of surface-mount components to the circuit board.

4. Dual-Head Nozzles:

Dual-head nozzles combine multiple functionalities into a single nozzle assembly, allowing for enhanced flexibility and efficiency. These nozzles may incorporate vacuum pickup, gripper mechanisms, or paste dispensing capabilities, depending on the specific application requirements.

Dual-head nozzles are high-speed assembly lines that demand versatility and adaptability in component handling.

As manufacturers embrace these innovative nozzle technologies and adapt to changing market dynamics, they will not only optimize their production processes but also unlock new opportunities for innovation and growth. The era of intelligent SMT nozzle placement is here, and those who embrace it will lead the way towards a more precise and efficient future.

The above are smt nozzles component of the SMT machine, I believe it can bring you some help in the work, the next time Yangling Electronics will tell you about smt skills, welcome to contact Nancy if you are interested in our products
