Beginner's Guide to SMT

Surface Mount Technology (SMT) has revolutionized the electronics industry by providing smaller, more efficient, and more reliable electronic devices. SMT involves mounting and soldering tiny components onto a printed circuit board (PCB) using a 贴片机or pick and place machine. This article provides a comprehensive guide to SMT, including the benefits of using SMT, basic principles of SMT assembly, and the types of machinery used in the process. By the end of this article, readers will have a basic understanding of SMT and the advantages it offers in electronic manufacturing.

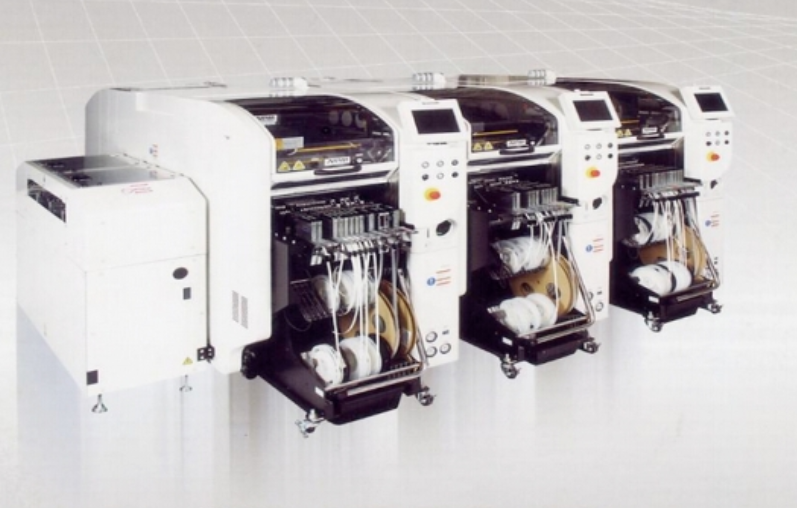

SMT machine: also known as "mounting machine", "Surface Mount System" (Surface Mount System), in the production line, it is configured after the dispensing machine or screen printing machine, is a device that accurately places the surface mount components on the PCB pad by moving the mounting head.

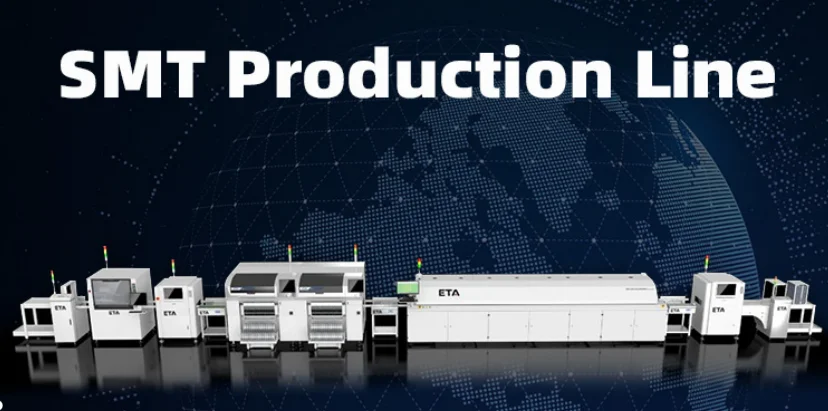

Automatic placement machine is used to achieve high-speed, high-precision automatic placement of components equipment, is the most critical and complex equipment in the entire SMT production. SMT mounter is the main equipment in the SMT production line, the mounter has developed from the early low-speed mechanical mounter to high-speed optical alignment mounter, and to the multi-functional, flexible connection modular development.

SMT features:

1, high assembly density, small size and light weight of electronic products, the volume and weight of the patch components are only about 1/10 of the traditional plug-in components, generally after the use of SMT, the volume of electronic products is reduced by 40% to 60%, and the weight is reduced by 60% to 80%.

2, high reliability, strong vibration resistance. Low defect rate of solder joint.

3, good high-frequency characteristics. Reduced electromagnetic and radio frequency interference.

4, easy to achieve automation, improve production efficiency. Reduce the cost by 30%~50%. Save materials, energy, equipment, manpower, time.
