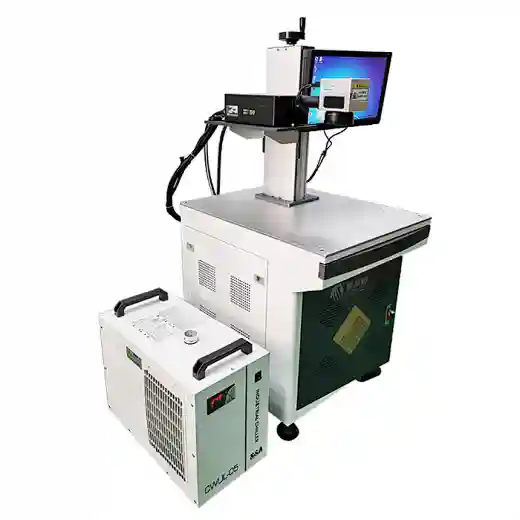

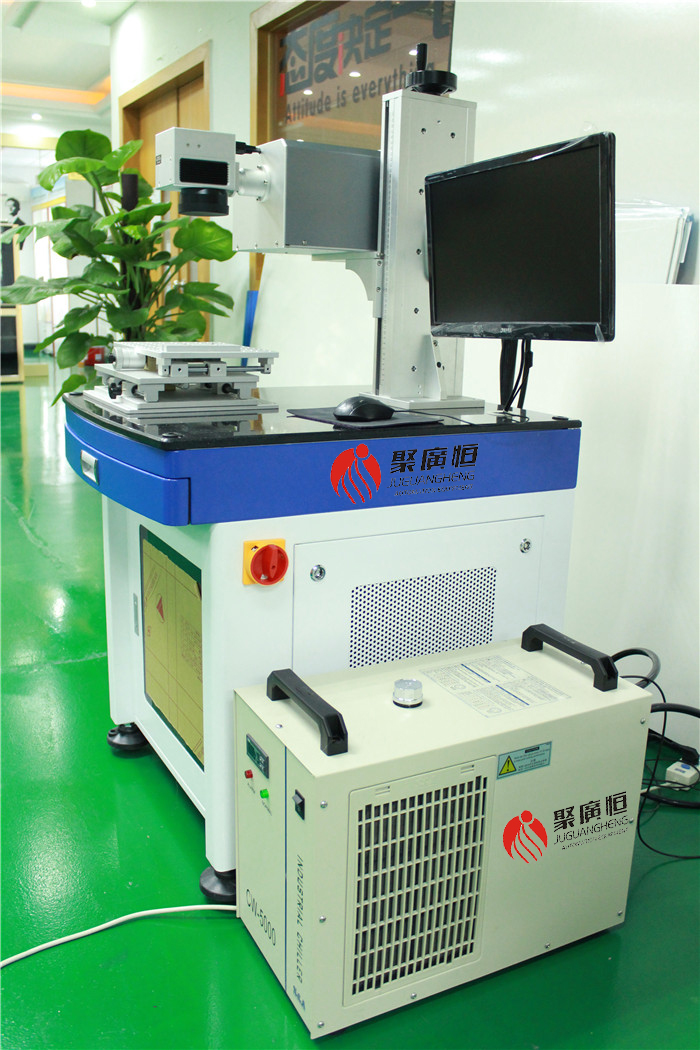

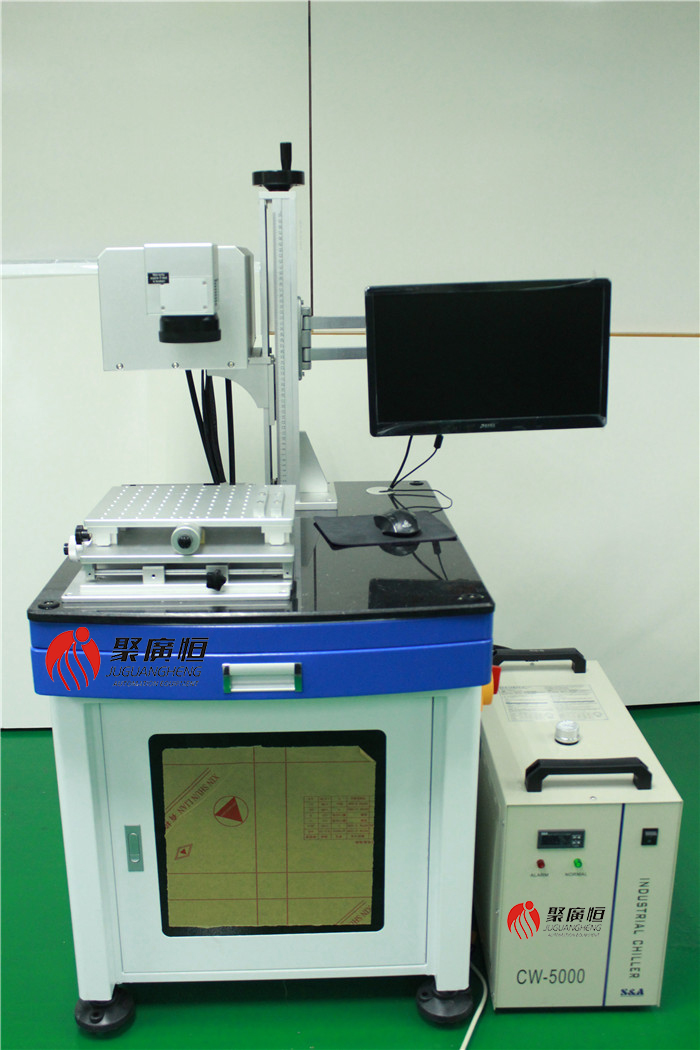

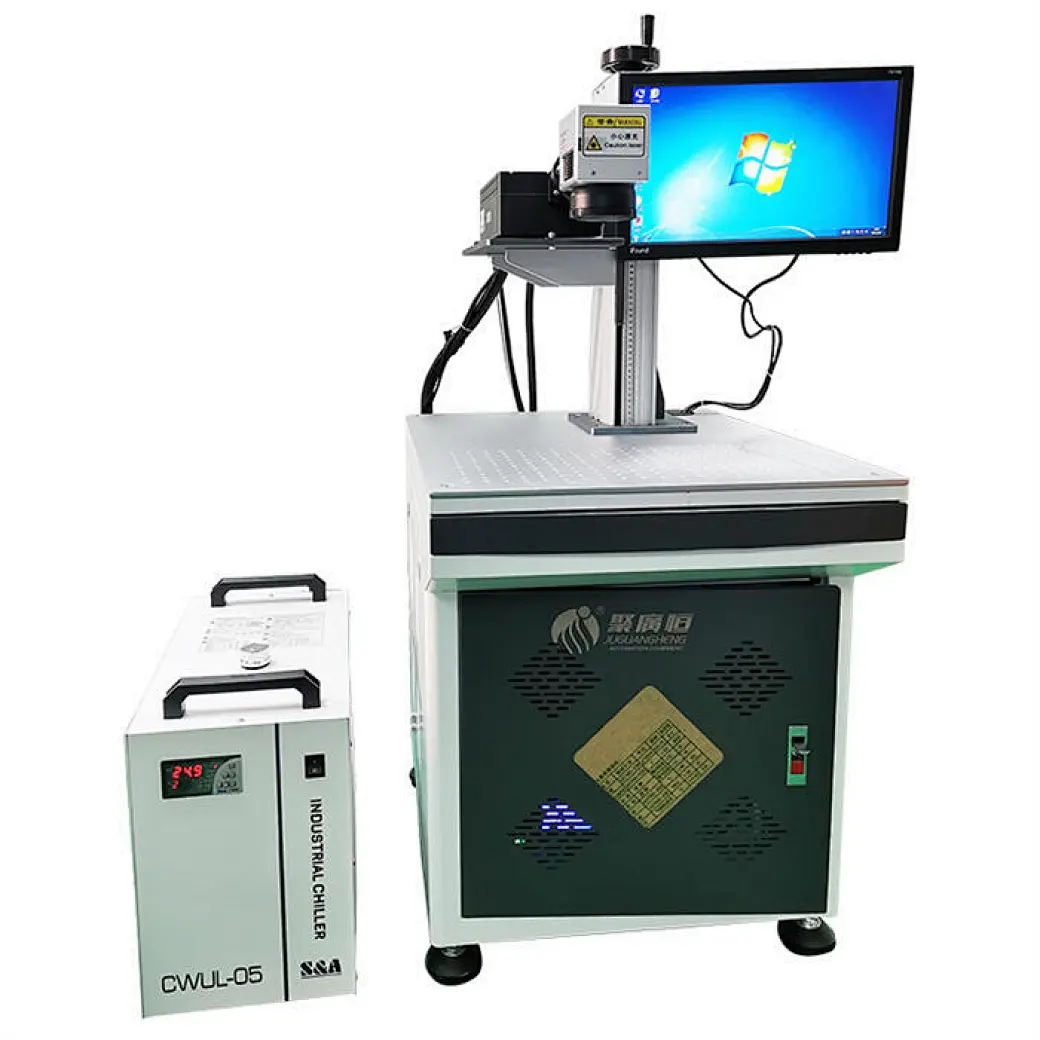

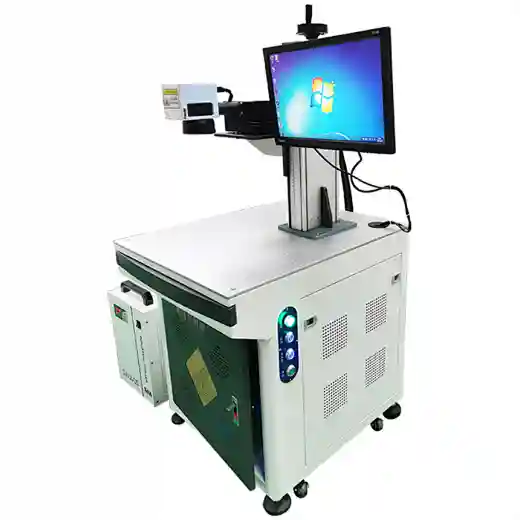

| Equipment Name | UV Laser Marking Machine |
| Model of machine | JGH-102 |
| Laser wave length | 355um |

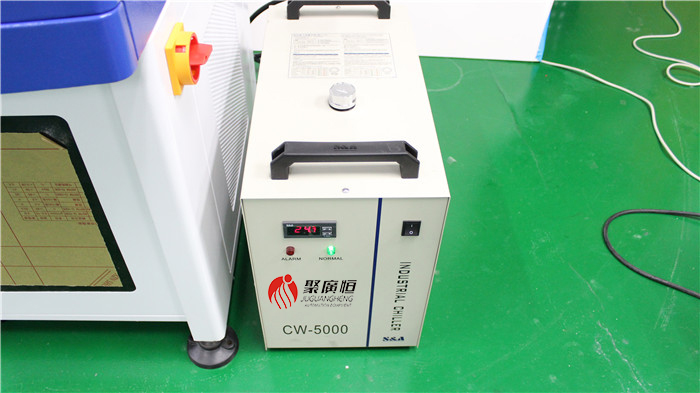

| Machine Size | L:65cm W:80cm H:155cm(Cooling box is: L:29cm W:56cm H:41cm) |
| Laser Power | 1W/3W/5W/7W/8W |
| Marking Range | 100x100mm、150x150mm(optical) |
| Marking Speed | 250 characters/s (Rome font, 1mm high letters) |
| Optical Quality | ＜2 |
| Q Repetition Frequency | 8KHz-15KHz |
| Mark Minimum Character | 0.2mm |
| Mark Minimum Line Width | 0.01mm |
| Repeated Accuracy | ±0.003mm |
| Total Power Consumption | ＜1.5KW |
| Power Demand | 220V / 50Hz / 10A |
| Machine Net Weight | 85KG |
