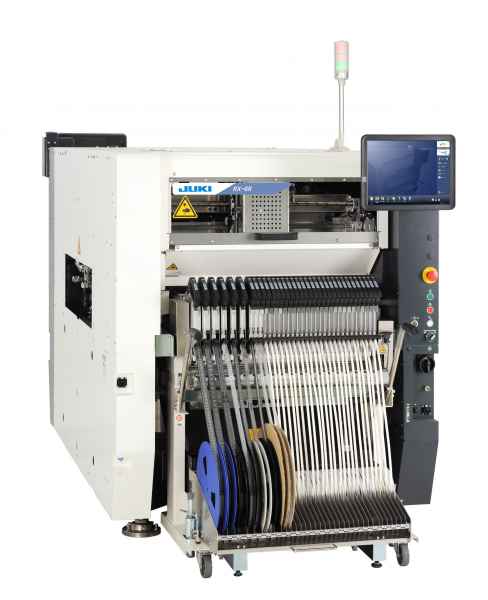

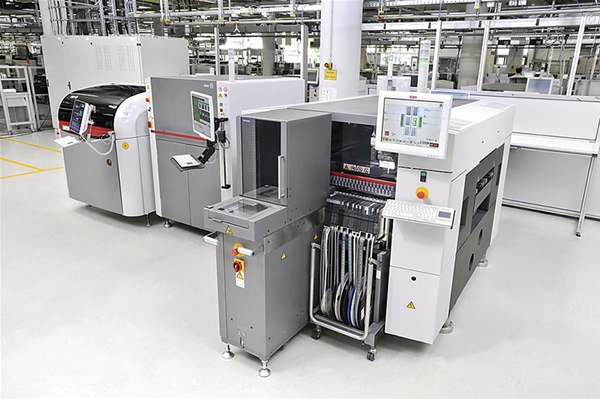

Multi-function SMT Machine for Component Position and Direction Adjustment
author: Cindy
2022-05-20
Multi-function SMT machine is generally arch frame type SMT machine, SMT machine components feeder, substrate (PCB) is fixed. The head (installation of a plurality of vacuum suction nozzle) between the feeder and substrate work back and forth, it take out the components from the feeder to adjust the position and direction of components, and then paste on the substrate. Because the patch head is installed on the arch type of X/Y coordinate beam, so the name. Yangling Electronics like to share the multi-functional SMT machine to adjust the position and direction of components:
Some information from the network, if there is infringement, please contact our company, telephone: 13580828702
1. Adjust the position of the mechanical alignment and rotate the nozzle to adjust the direction. This method has limited accuracy and is no longer used by the later models
2. Laser recognition, X/Y coordinate system position adjustment, nozzle rotation to adjust the direction, the method can realize the identification in the flight process, but can not be used for the ball grid element BGA
3. Camera recognition, X/Y coordinate system adjustment position, nozzle rotating direction, general camera fixed, multi-function SMT machine opening flying across over the camera, image recognition, than laser identification delay a little time, but it can also identify any components, which has implemented in the process of flight recognition camera recognition system, mechanical structure with damage
Some information from the network, if there is infringement, please contact our company, telephone: 13580828702
SMT Machine Production Line Installation and Commissioning
Precautions For Correct Operation of SMT Machine Equipment
Related Article
Molykote Longterm 2 Plus 1KG is a high-performance long-life bearing grease designed for heavy-duty industrial applications. Excellent wear protection, high load resistance and extended lubrication intervals. Available as a cost-effective alternative from professional lubricant manufacturers.
Molykote Longterm 2 Plus Grease 1KG Extreme Pressure Bearing Grease Industrial Lubricant for Bearings and Machinery
Molykote HP-870 Grease 1KG is a high performance industrial lubricant designed for high temperature bearings and precision equipment. Premium alternative solution available.
High Temperature Bearing Grease Molykote HP-870 1KG PFPE Grease Long Life Lubrication Solution for Bearings Motors and Industrial Equipment

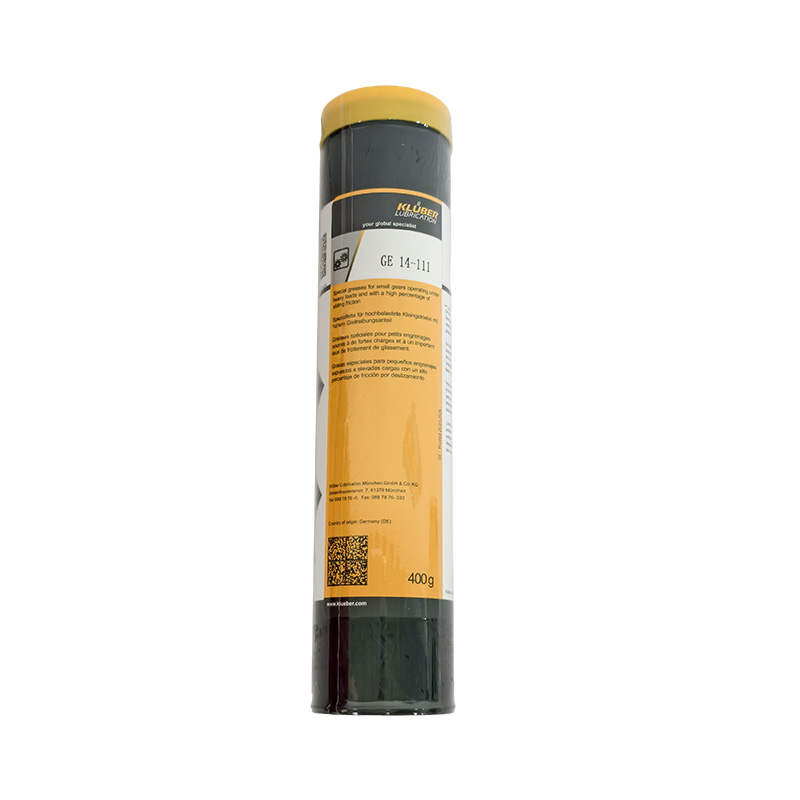

Klubersynth GE 14-111 400g is a high-performance synthetic gear grease designed for long-term lubrication of industrial gear systems. It provides excellent wear protection, high load carrying capacity, and reliable performance under demanding operating conditions. Our high-quality alternative delivers similar lubrication performance with competitive pricing and stable supply.
Premium Synthetic Gear Grease Kluber Klubersynth GE 14-111 400g Long Life Synthetic Lubricating Grease for Industrial Gear Systems

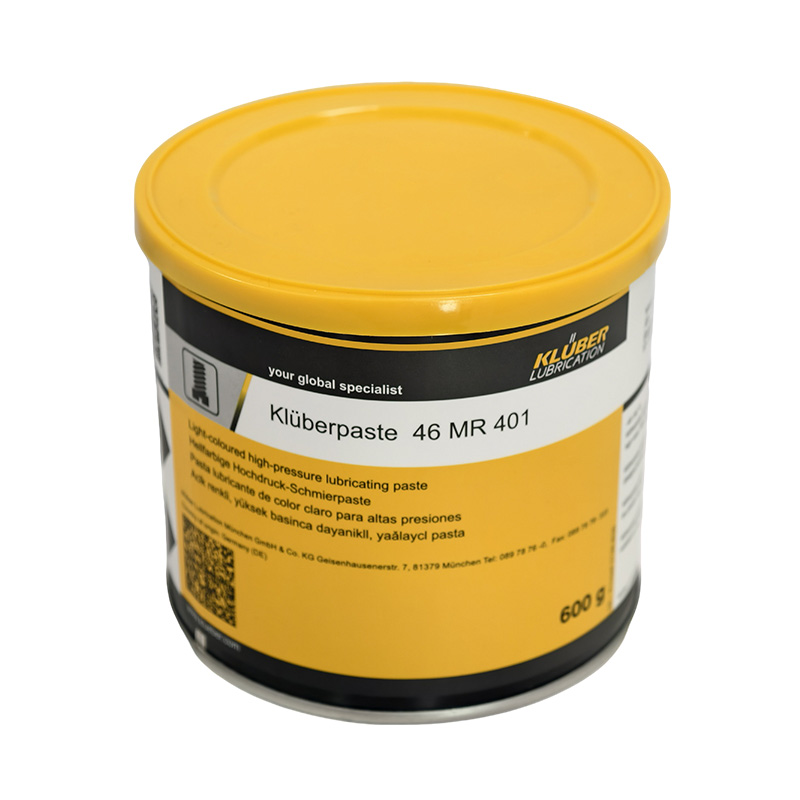

Kluberpaste 46 MR 401 is a multipurpose lubricating paste with selected base oils, lithium soap and special solid lubricant additives.
