Different Type of Depaneling Machine We Sell
author: Nancy
2024-08-24
Features
The body of machine is together produced by aluminium alloy. It easily be cooperated , no taking up space and with high speed.
Distance of upper and lower knife could be accurately adjusted, to solve the V-CUT depth problem. And the plate will produce the internal stress to minimize.
upper and lower round knife can be precisely adjusted, where the V-CUT PCB board and aluminum plate can be applied to this machine cutting.
machine maintenance is simple.
Tool used in Germany imported steel, customized by Taiwan professional knife company, with wear-resistant, long life, and use-repeating.
Surface with special blue spray powder paint, not easy to fall off.
The body of machine is together produced by aluminium alloy. It easily be cooperated , no taking up space and with high speed.
Distance of upper and lower knife could be accurately adjusted, to solve the V-CUT depth problem. And the plate will produce the internal stress to minimize.
upper and lower round knife can be precisely adjusted, where the V-CUT PCB board and aluminum plate can be applied to this machine cutting.
machine maintenance is simple.
Tool used in Germany imported steel, customized by Taiwan professional knife company, with wear-resistant, long life, and use-repeating.
Surface with special blue spray powder paint, not easy to fall off.
JGH-202 LED Tube PCB Depaneling Machine
Model Number:JGH-202
Host size:380x290x380mm
1200mm Stainless steel platform size: 1200X500X400mm
2400mm Stainless steel platform size: 2400X500X400mm
Maximum slab length: Unlimited
Sub-board speed: 0-400mm/s
Sub-board thickness: 0.8-3.5mm
Using voltage: 220VAC
Weight:40Kg
YL-206 Feed Type Depaneling Machine
Power supply: single-phase AC230/110V 50-60HZ, 40W
Machine size: L620*W400*H430mm
Packing size: L640*W420*H450mm,
Net weight: 37Kg, packing weight:
Tool material: SHD61 imported high speed steel,
Upper round knife: 125mm diameter, lower straight knife length: 356mm
Power supply: single-phase AC230/110V 50-60HZ, 40W
Machine size: L620*W400*H430mm
Packing size: L640*W420*H450mm,
Net weight: 37Kg, packing weight:
Tool material: SHD61 imported high speed steel,
Upper round knife: 125mm diameter, lower straight knife length: 356mm

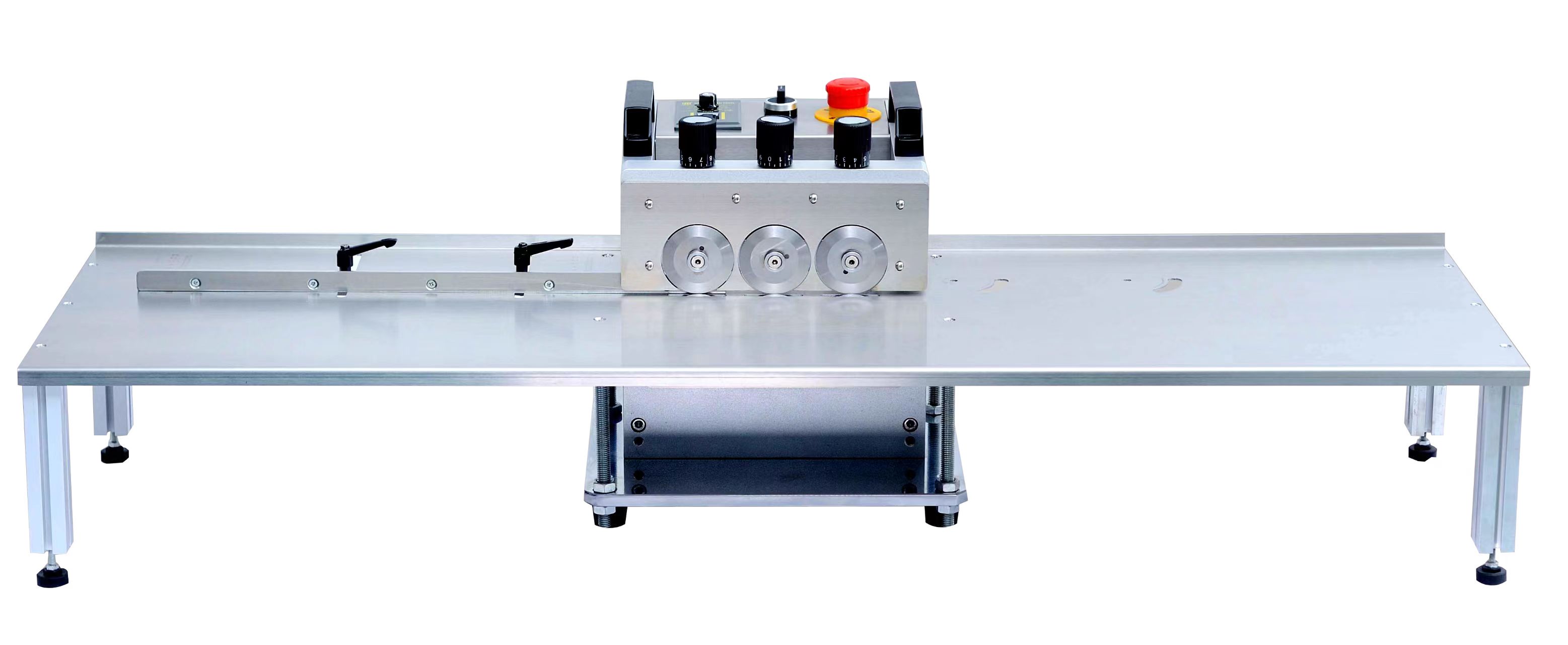

JGH-213/214 Automatic Three-Blade Depaneling Machine
Machine weight：48KG
Machine size：L325*W380*333mm
Platform size：L1200/2400*W506*333mm
Tool material：Germany SKD11
Power：60W
Motor type：YUTIAN 60W Governor Motor
Input voltage：220V,50HZ/110V，60HZ
Machine weight：48KG
Machine size：L325*W380*333mm
Platform size：L1200/2400*W506*333mm
Tool material：Germany SKD11
Power：60W
Motor type：YUTIAN 60W Governor Motor
Input voltage：220V,50HZ/110V，60HZ
After Yangling Electronics describing the feature and type of depaneling machine. If you are interested in our products, please contact Nancy.
Some information comes from the internet, if there is infringement, please contact us at 13580828702.
