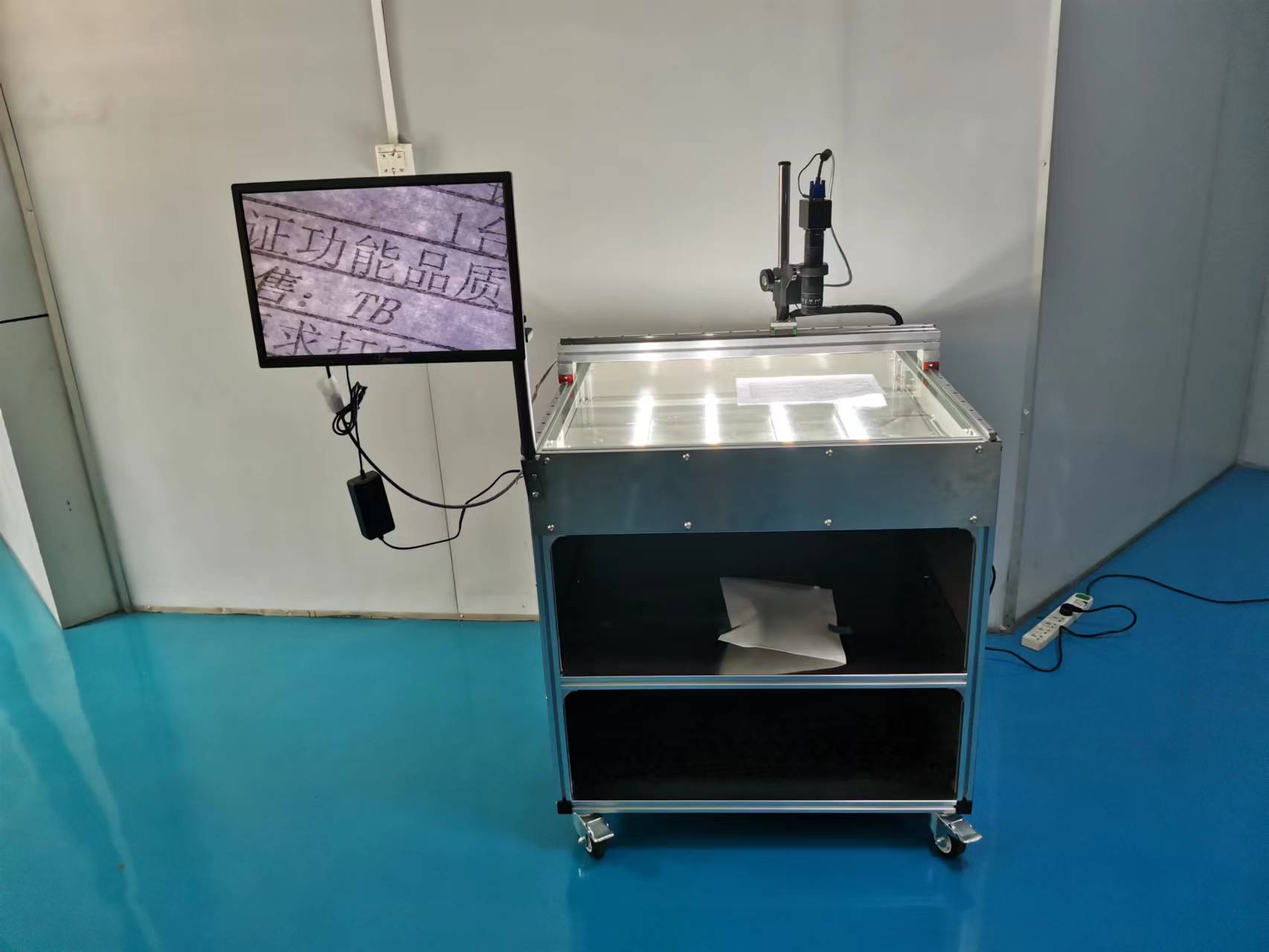

Characteristics of Steel Mesh Detection Machine

Parameter:

Machine name: Steel mesh testing table Product Brand:

Working mode: Voltage mode + manual mode Weight: 45kg

Working voltage: AC220V 50Hz Material: stainless steel

Steel mesh size: 736*736 mm lamp number: 8W * 4

Microscope magnification: CCD microscope 50 times camera movement: X700*Y700*Z100mm

Display: 19 inch HD LCD Glass material: tempered glass

Detection speed: 0.5 m/s Detection width: 700mm

Whether guide rail: Brand guide rail external size: 850*850*900 mm

The characteristics of the steel mesh testing platform are as follows:

① The products are used in the detection of steel mesh, screen screen, circuit board, printing and other industry products.

② The product is equipped with electron microscope equipment, which can help customers intuitively detect the defects and defects on the product, so as to facilitate timely solution of problems and easy operation.

③ It can detect defect types, such as dirt, damage, impurities, blurring, ink spots, raw edges, residue, offset, poor overprinting, scratches, bubbles, overflow, creases, etc.

④ The machine structure adopts 30*30 1.5mm stainless steel square tube, which is stable and does not shake when looking for checkpoints.

⑤ The steel mesh is placed on the plane, and the movement and inspection are carried out during the inspection.

⑥ Power supply 220V, with safety device, to ensure personal safety.

After Yangling Electronics describing the parameter and characteristics of steel mesh detection machine, you may have some understanding of it . If you are interested in our products, please contact Nancy to make an inquiry.
