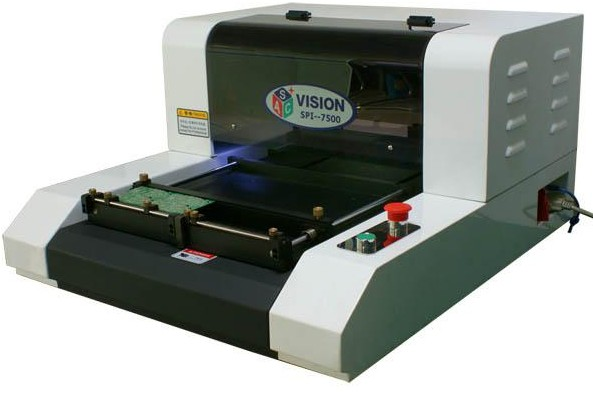

3D Solder Paste Thickness Tester/Inspection System in SMT Production Line

Brief introduction

The automatic 3D solder paste thickness tester can obtain 3D data at each point through the automatic XY platform's moving/Z-axis image auto-focusing and laser scanning of the solder paste, and can also be used to measure the average thickness of the solder paste throughout the pad, so that the solder paste printing process is well controlled.

Product function

1. fast programming, friendly programming interface

2. a variety of ways to measure

3. the real one-button measurement

4. eight movement button, one key focus

5. Adjustable scanning spacing

6. solder paste 3D simulation function

7. powerful SPC function

8. MARK deviation is automatically corrected

9. one click back to the center of the screen

Feature

1. programmable measurement of several areas, automatic focus at different test points, to overcome the error caused by plate deformation;

2. Automatically find the inspection position and correct the deviation through PCB MARK;

3. measurement mode: automatic, automatic moving manual measurement, manual moving manual measurement;

4. solder paste 3D simulation map, reproducing solder paste real appearance;

5. the use of 3-axis automatic movement, focusing, automatic compensation to correct the warping deformation of the substrate, to obtain accurate solder paste height;

6. high-speed and high-resolution camera, high precision, powerful SPC data statistical analysis;

7. SIGMA automatic discrimination function, so that your operator has the ability to distinguish the solder paste printing process quality in real time;

8. automatically generate CP, CPK, X-BAR, R-CHART, SIGMA bar chart, trend chart, control chart, etc.

9. 2D auxiliary measurement, distance between two points, area size, etc.;

10. The measurement result data list is automatically saved and SPC report is generated.

These are the 3D solder paste inspection system Yangling Electronics mainly talking about. If you are interested in our products, please contact Nancy to make an offer for you. Thank you.
